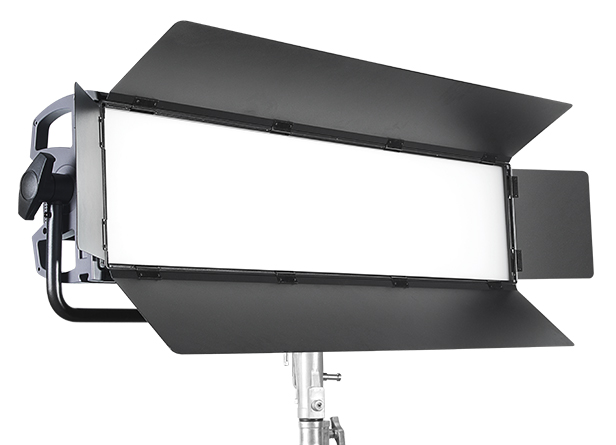

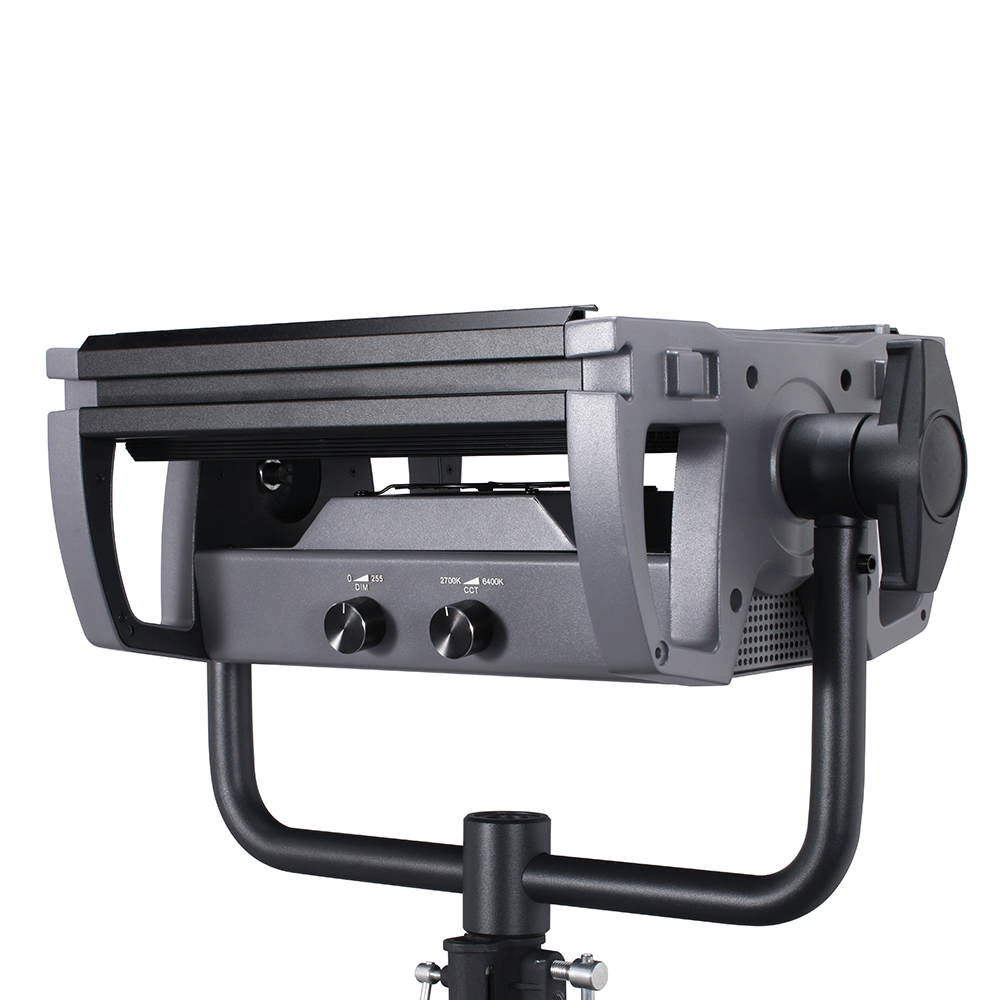

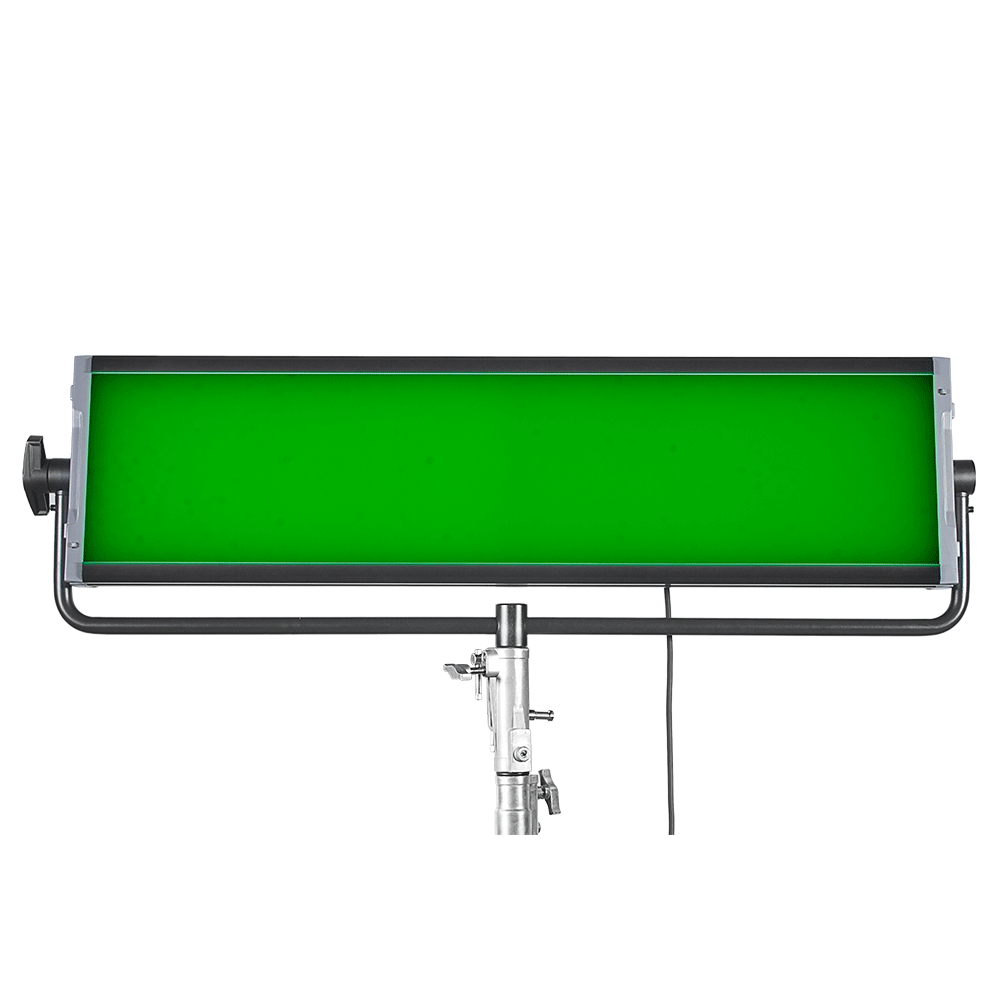

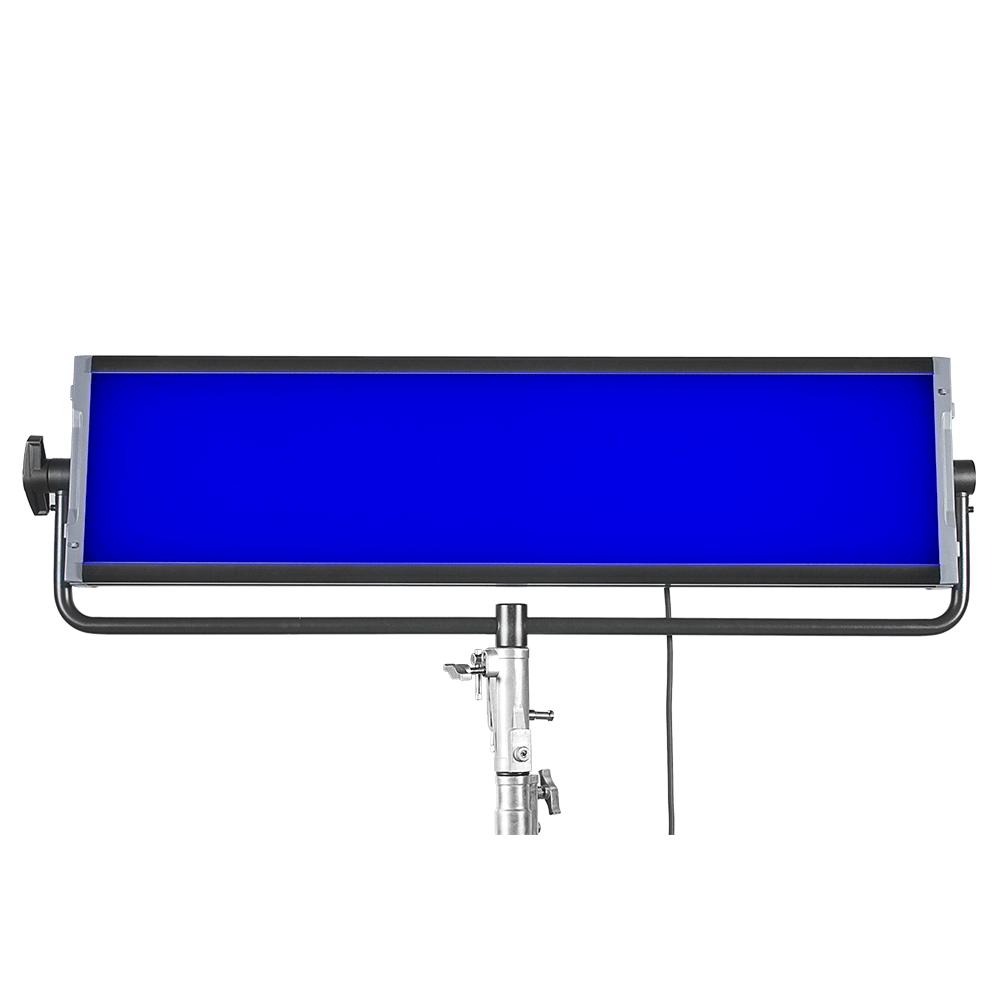

GEM4x1 FC

Description



Photometrics

Light Source:   1500W R+G+B+CW+WW

Lens Angle: 110°


Power

Voltage: AC100-240V  ,50/60Hz

Consumption:  750W


Key Features

CRI: ≥96

CQS (Color Quality Scale):≥96

CCT: 2700k~10000K

PWM:20KhZ

Dimmer mode: 8/16 bit dimming


Control

Control Protocol: RDM / DMX512 /ART-NET/sACN

Operation:RGBW+CCT+HSI Mode

Built-in Programs: yes


Housing:

Material: Aluminum diecast

Finish: Matte grey

IP Grade: IP20


I/O

Power connections: Seetronic /Neutrik (optional)

Data connections: 3-pin /5-pin XLR DMX /RJ45 interface


Thermal

Cooling: Fan

Max. Amblent: 40°

Min. Amblent: -20°

Max housing:60°


Physical

Dimensions: mm

Net Weight: kgs


Options:

Power cord: Seetronic /Neutrik (Optional) powerCon

Hanging Device: Optional
